Published row 1
- Power
- 15W
- Dimensions
- Round Ø80 × H90 mm
- Cut-out
- Confirm for project
Product model / MET-MTD2401

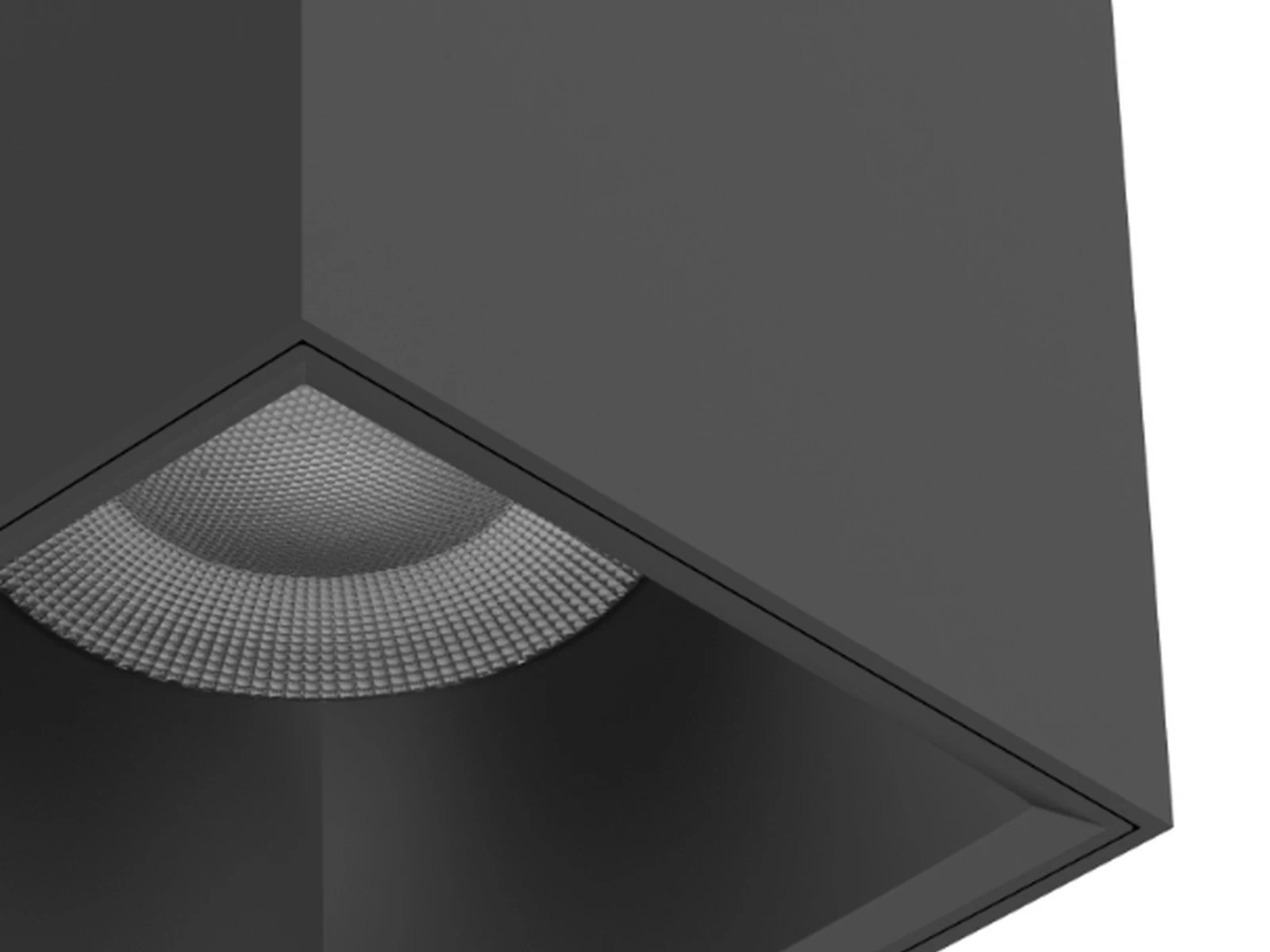

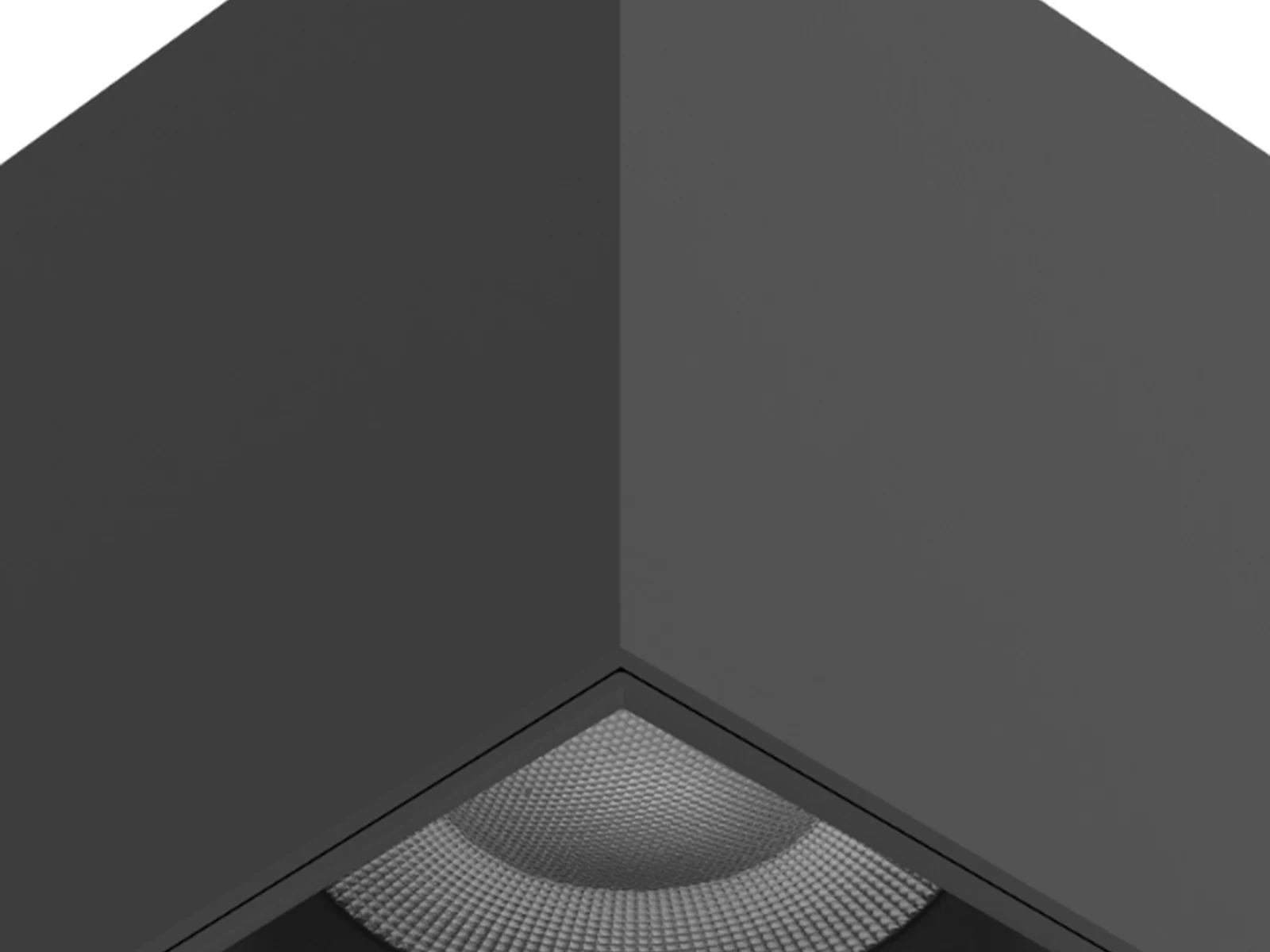

IP65 Surface-Mounted Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

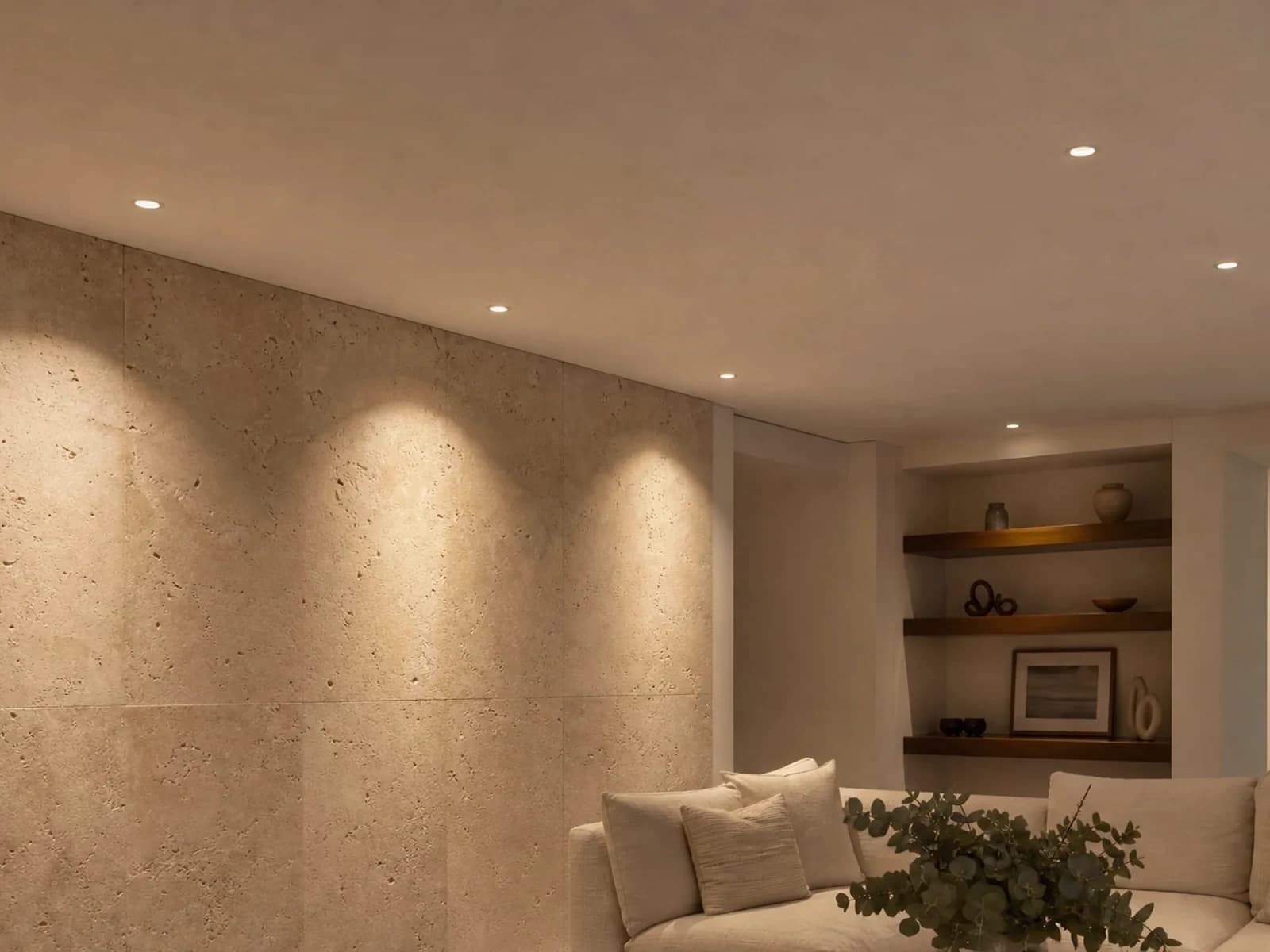

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 15W | Round Ø80 × H90 mm | Confirm for project |
| 20W | Round Ø100 × H100 mm | Confirm for project |
| 30W | Round Ø130 × H130 mm | Confirm for project |
| 40W | Round Ø150 × H140 mm | Confirm for project |
| 48W | Round Ø170 × H160 mm | Confirm for project |
| 15W | Square 80 × 80 × H90 mm | Confirm for project |
| 20W | Square 100 × 100 × H96 mm | Confirm for project |
| 30W | Square 130 × 130 × H121 mm | Confirm for project |
| 40W | Square 150 × 150 × H136 mm | Confirm for project |
| 48W | Square 170 × 170 × H156 mm | Confirm for project |
Published row 2
- Power
- 20W
- Dimensions
- Round Ø100 × H100 mm
- Cut-out
- Confirm for project
Published row 3
- Power
- 30W
- Dimensions
- Round Ø130 × H130 mm
- Cut-out
- Confirm for project
Published row 4
- Power
- 40W
- Dimensions
- Round Ø150 × H140 mm
- Cut-out
- Confirm for project
Published row 5
- Power
- 48W
- Dimensions
- Round Ø170 × H160 mm
- Cut-out
- Confirm for project
Published row 6
- Power
- 15W
- Dimensions
- Square 80 × 80 × H90 mm
- Cut-out
- Confirm for project
Published row 7
- Power
- 20W
- Dimensions
- Square 100 × 100 × H96 mm
- Cut-out
- Confirm for project
Published row 8
- Power
- 30W
- Dimensions
- Square 130 × 130 × H121 mm
- Cut-out
- Confirm for project
Published row 9
- Power
- 40W
- Dimensions
- Square 150 × 150 × H136 mm
- Cut-out
- Confirm for project
Published row 10
- Power
- 48W
- Dimensions
- Square 170 × 170 × H156 mm
- Cut-out
- Confirm for project
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- SMD LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 55°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-MTD2401
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
