Published row 1
- Power
- 12W
- Dimensions
- Surface-mounted Ø57 × H144 mm
- Cut-out
- Confirm for project
Product model / MET-TD2406

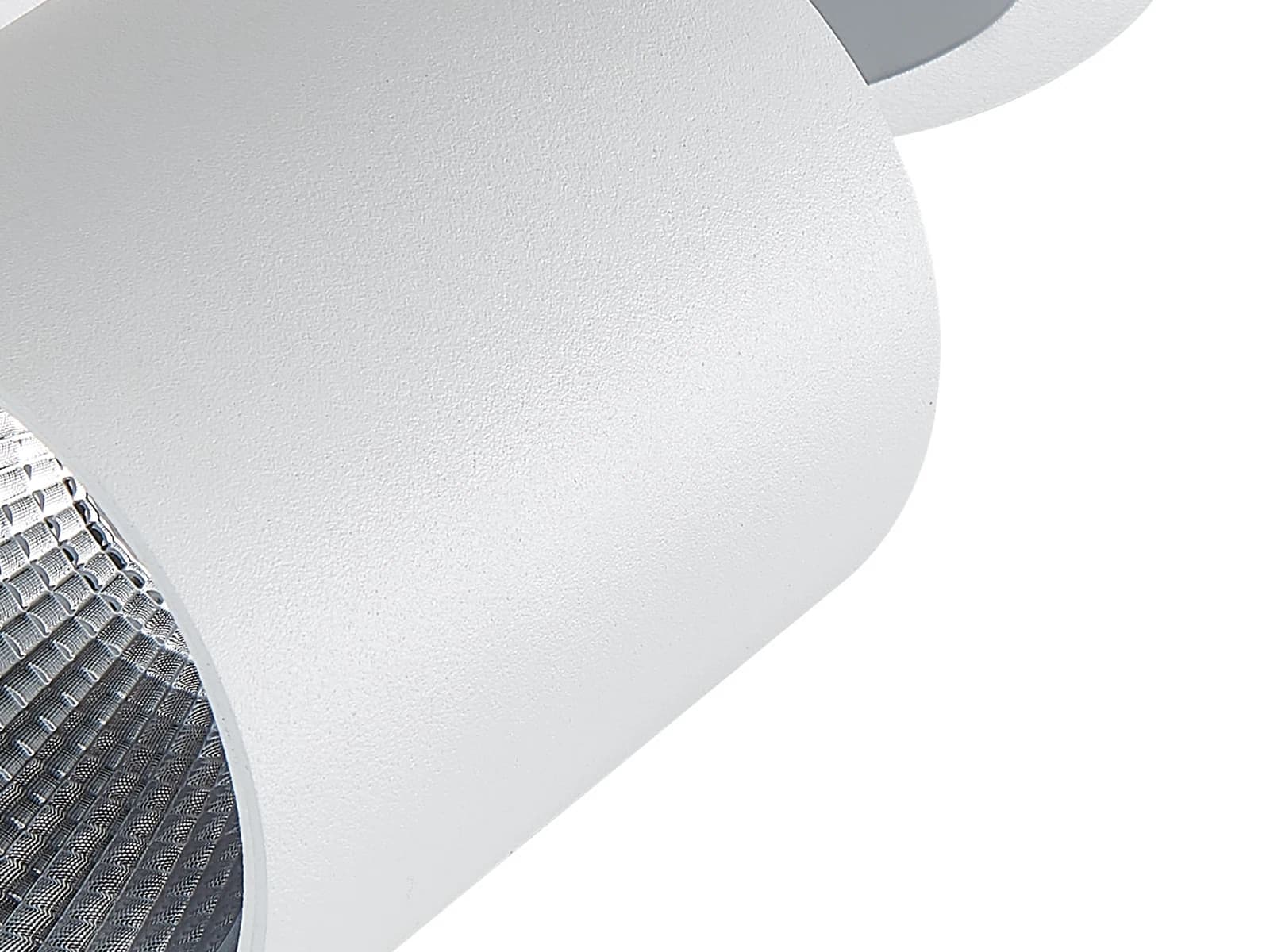

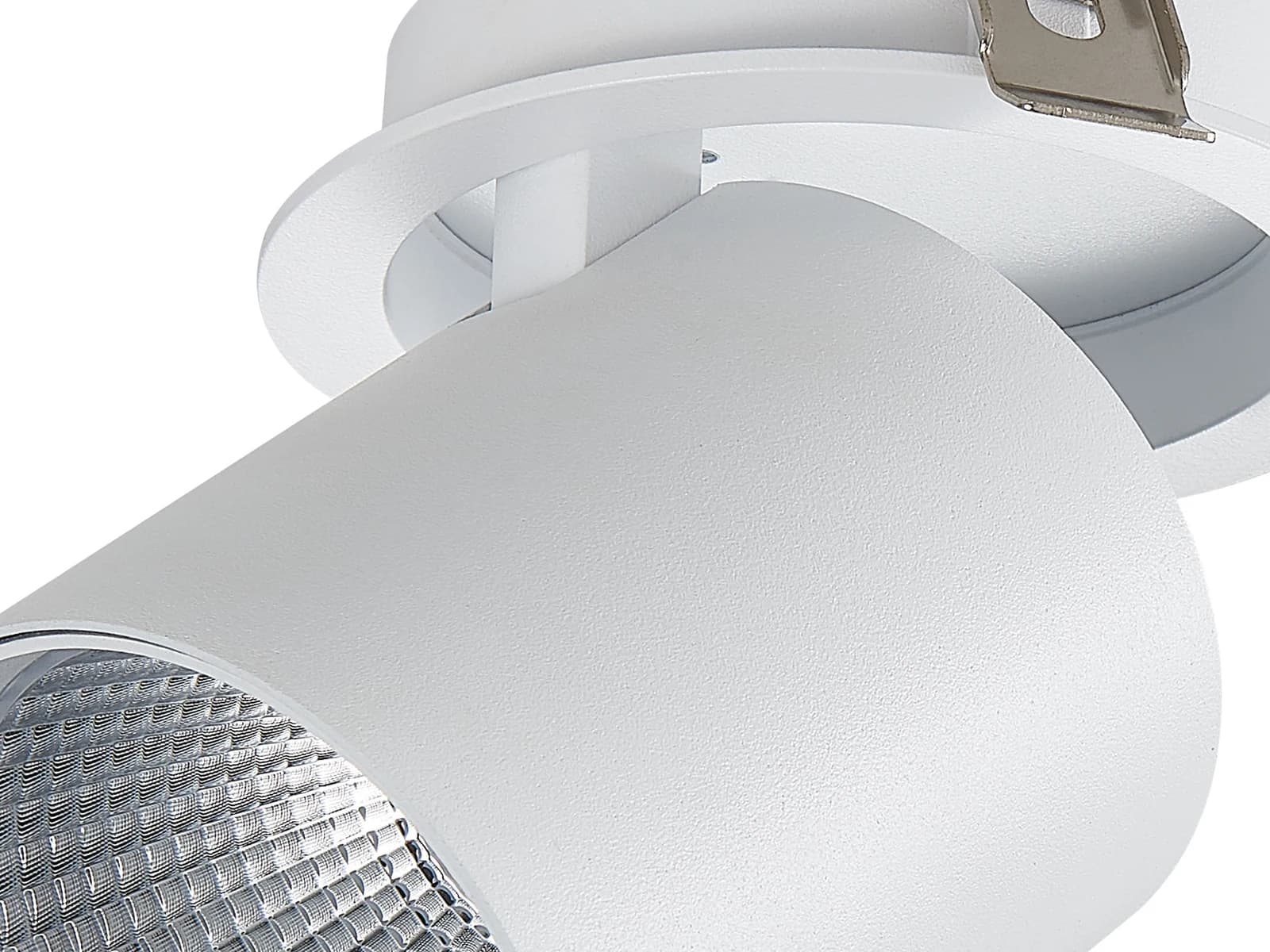

Foldable COB Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application
Detail 01
Detail 02

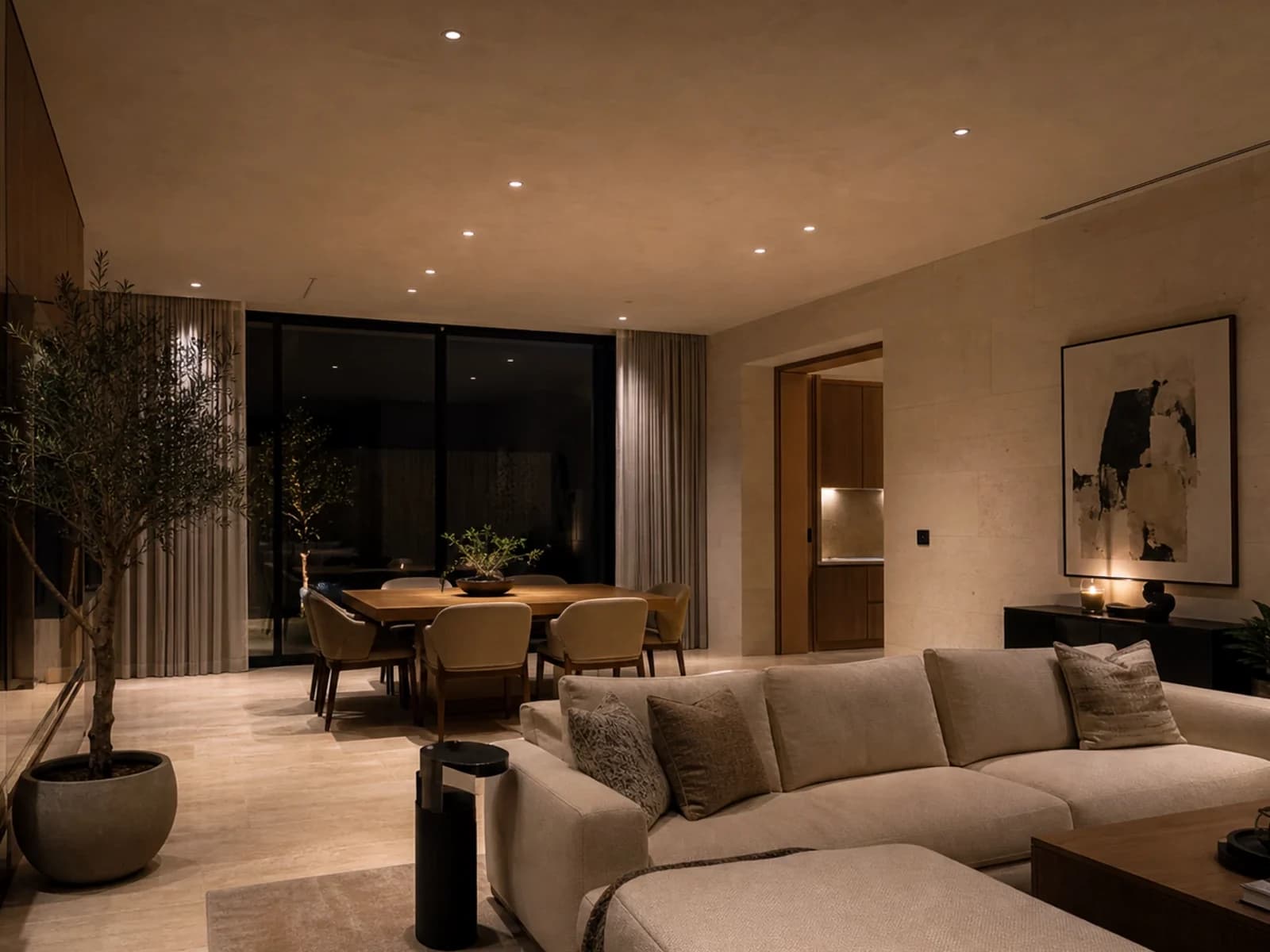

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 12W | Surface-mounted Ø57 × H144 mm | Confirm for project |
| 15W | Surface-mounted Ø57 × H174 mm | Confirm for project |
| 24W | Surface-mounted Ø70 × H204 mm | Confirm for project |
| 30W | Surface-mounted Ø70 × H204 mm | Confirm for project |
| 36W | Surface-mounted Ø70 × H204 mm | Confirm for project |
| 12W | Recessed Ø57 × H125 mm | Ø75-85 mm |
| 15W | Recessed Ø57 × H149 mm | Ø75-85 mm |
| 24W | Recessed Ø70 × H176 mm | Ø95-110 mm |
| 30W | Recessed Ø70 × H176 mm | Ø95-110 mm |
| 36W | Recessed Ø70 × H176 mm | Ø95-110 mm |
| 20W | Surface-mounted Ø71 × H130 mm | Confirm for project |
| 30W | Surface-mounted Ø82 × H145 mm | Confirm for project |
| 40W | Surface-mounted Ø100 × H150 mm | Confirm for project |
| 20W | Recessed Ø90 × H115 mm | Ø75 mm |
| 30W | Recessed Ø110 × H135 mm | Ø95 mm |
| 40W | Recessed Ø130 × H147 mm | Ø115 mm |
Published row 2
- Power
- 15W
- Dimensions
- Surface-mounted Ø57 × H174 mm
- Cut-out
- Confirm for project
Published row 3
- Power
- 24W
- Dimensions
- Surface-mounted Ø70 × H204 mm
- Cut-out
- Confirm for project
Published row 4
- Power
- 30W
- Dimensions
- Surface-mounted Ø70 × H204 mm
- Cut-out
- Confirm for project
Published row 5
- Power
- 36W
- Dimensions
- Surface-mounted Ø70 × H204 mm
- Cut-out
- Confirm for project
Published row 6
- Power
- 12W
- Dimensions
- Recessed Ø57 × H125 mm
- Cut-out
- Ø75-85 mm
Published row 7
- Power
- 15W
- Dimensions
- Recessed Ø57 × H149 mm
- Cut-out
- Ø75-85 mm
Published row 8
- Power
- 24W
- Dimensions
- Recessed Ø70 × H176 mm
- Cut-out
- Ø95-110 mm
Published row 9
- Power
- 30W
- Dimensions
- Recessed Ø70 × H176 mm
- Cut-out
- Ø95-110 mm
Published row 10
- Power
- 36W
- Dimensions
- Recessed Ø70 × H176 mm
- Cut-out
- Ø95-110 mm
Published row 11
- Power
- 20W
- Dimensions
- Surface-mounted Ø71 × H130 mm
- Cut-out
- Confirm for project
Published row 12
- Power
- 30W
- Dimensions
- Surface-mounted Ø82 × H145 mm
- Cut-out
- Confirm for project
Published row 13
- Power
- 40W
- Dimensions
- Surface-mounted Ø100 × H150 mm
- Cut-out
- Confirm for project
Published row 14
- Power
- 20W
- Dimensions
- Recessed Ø90 × H115 mm
- Cut-out
- Ø75 mm
Published row 15
- Power
- 30W
- Dimensions
- Recessed Ø110 × H135 mm
- Cut-out
- Ø95 mm
Published row 16
- Power
- 40W
- Dimensions
- Recessed Ø130 × H147 mm
- Cut-out
- Ø115 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 36° / 60°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD2406
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
