Published row 1
- Power
- 7W
- Dimensions
- Fi × edØ62 × H85 mm
- Cut-out
- Ø50 mm
Product model / MET-TD322
COB Wall-Wash Spotlight
Catalogue-sourced spotlight family for villa, hospitality, retail and display-lighting specifications.
Product
Application
Detail 01
Detail 02

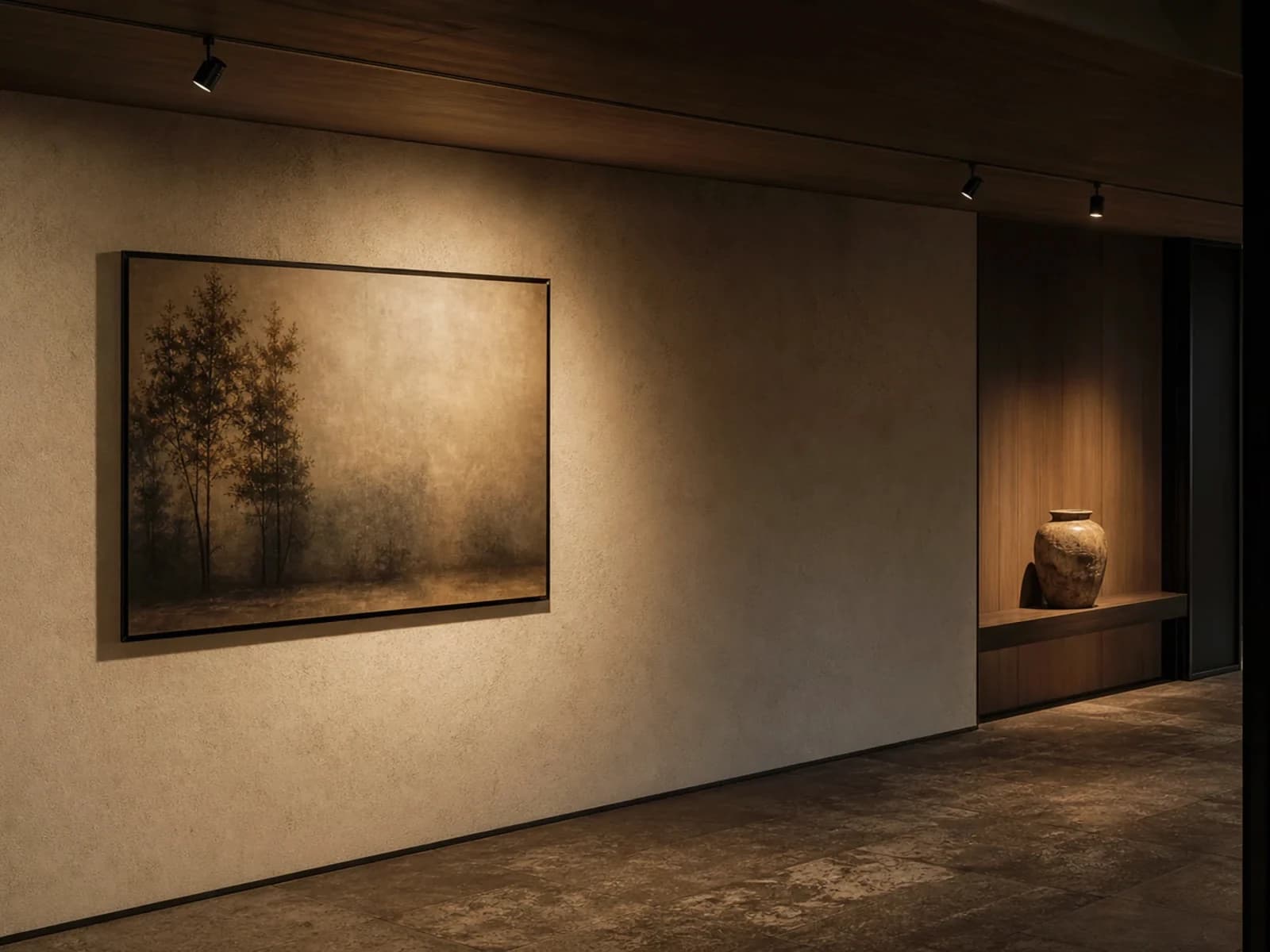

Application reference / not project evidence
An accent-lighting direction with controlled aim.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 7W | Fi × edØ62 × H85 mm | Ø50 mm |
| 12W | Ø86 × H1115 mm | Ø75 mm |
| 15W | Ø110 × H140 mm | Ø100 mm |
| 20W | Ø110 × H140 mm | Ø100 mm |
| 20W | Ø140 × H155 mm | Ø125-130 mm |
| 24W | Ø140 × H155 mm | Ø125-130 mm |
| 30W | Ø168 × H200 mm | Ø150-155 mm |
| 36W | Ø168 × H200 mm | Ø150-155 mm |
| 40W | Ø198 × H210 mm | Ø185 mm |
Published row 2
- Power
- 12W
- Dimensions
- Ø86 × H1115 mm
- Cut-out
- Ø75 mm
Published row 3
- Power
- 15W
- Dimensions
- Ø110 × H140 mm
- Cut-out
- Ø100 mm
Published row 4
- Power
- 20W
- Dimensions
- Ø110 × H140 mm
- Cut-out
- Ø100 mm
Published row 5
- Power
- 20W
- Dimensions
- Ø140 × H155 mm
- Cut-out
- Ø125-130 mm
Published row 6
- Power
- 24W
- Dimensions
- Ø140 × H155 mm
- Cut-out
- Ø125-130 mm
Published row 7
- Power
- 30W
- Dimensions
- Ø168 × H200 mm
- Cut-out
- Ø150-155 mm
Published row 8
- Power
- 36W
- Dimensions
- Ø168 × H200 mm
- Cut-out
- Ø150-155 mm
Published row 9
- Power
- 40W
- Dimensions
- Ø198 × H210 mm
- Cut-out
- Ø185 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 15° / 24° / 38°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD322
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
