Published row 1
- Power
- 14W
- Dimensions
- Ø83 × H65 mm
- Cut-out
- Ø75 mm
Product model / MET-TD2409

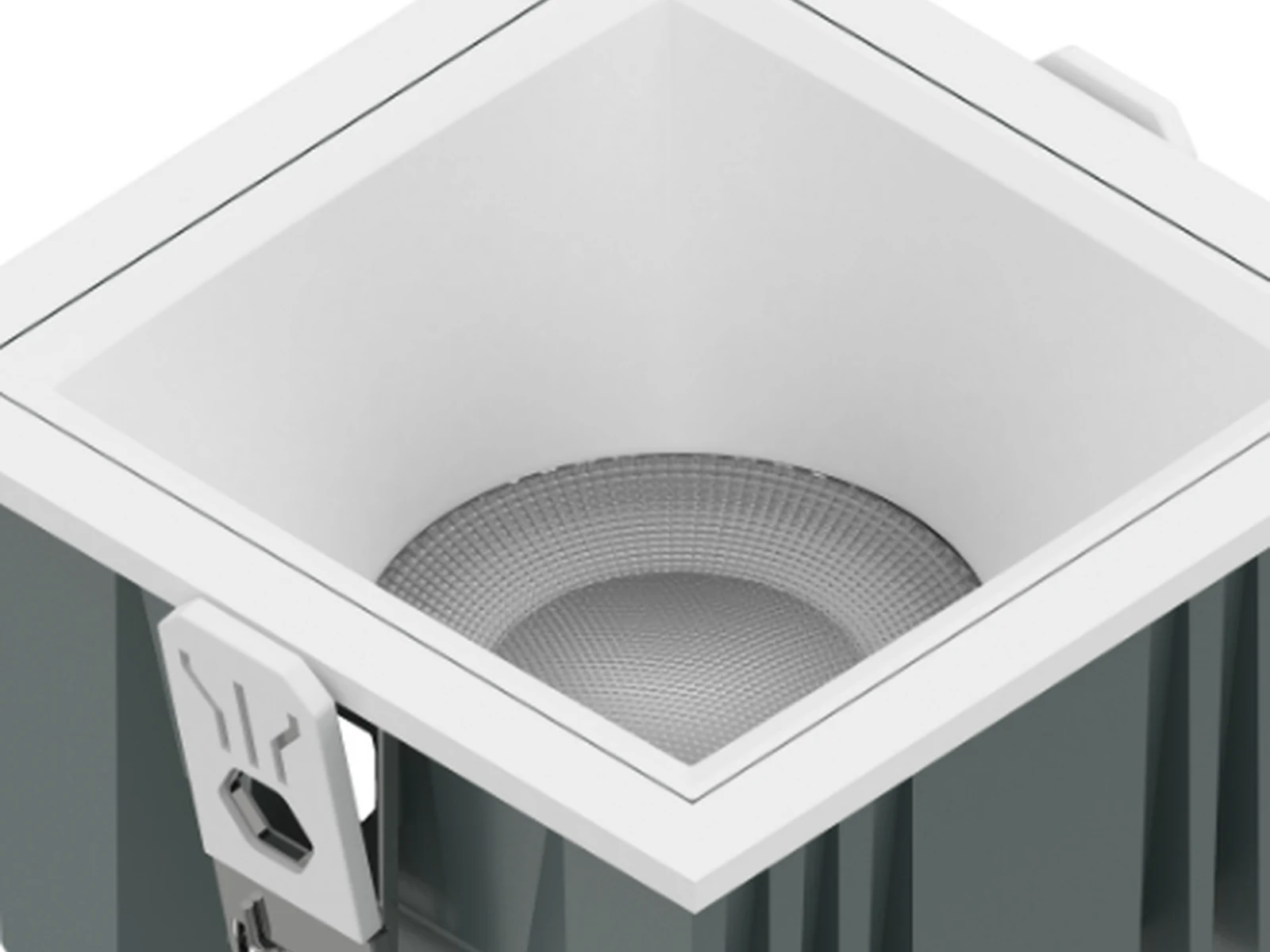

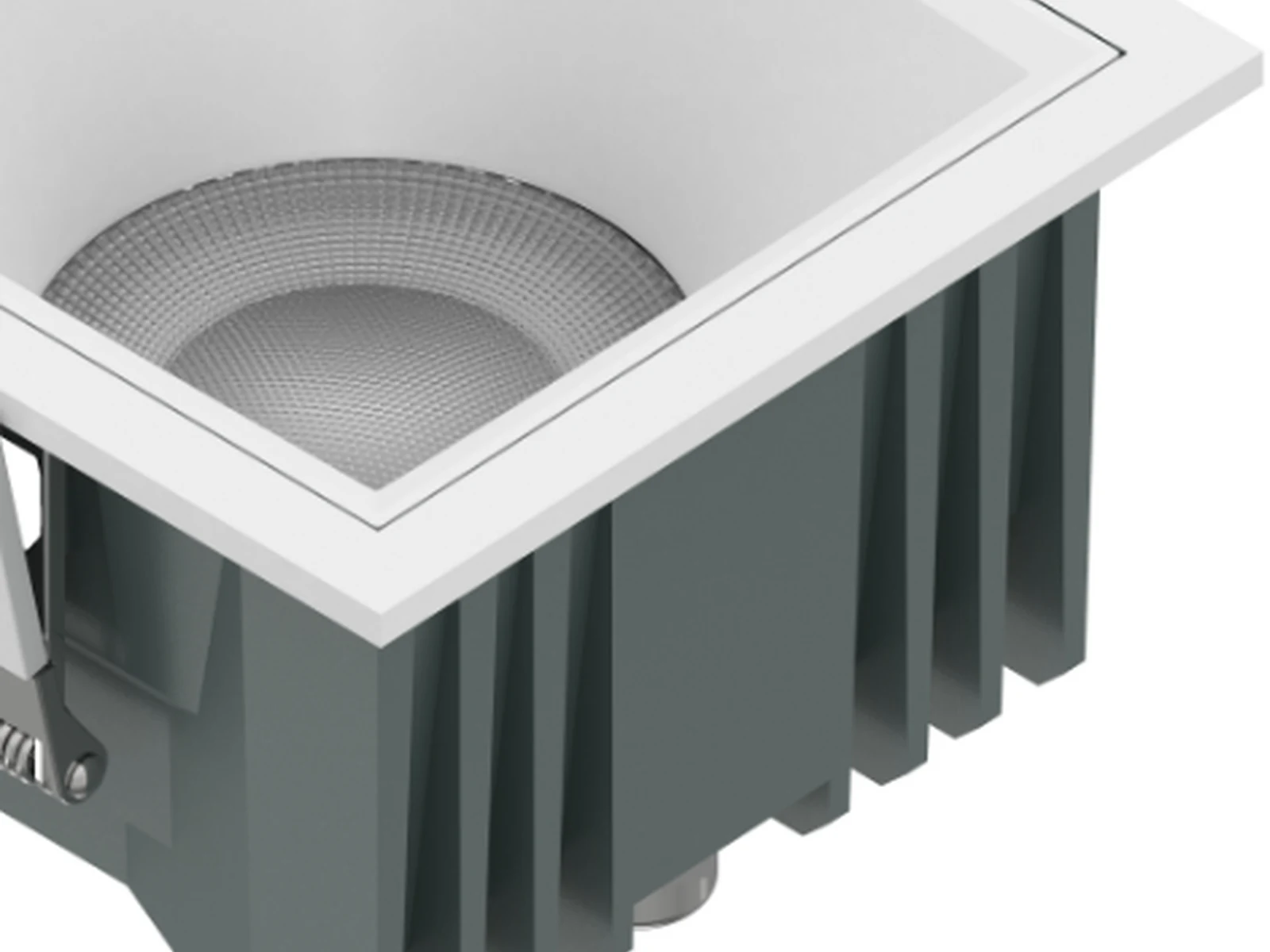

IP44 Anti-Glare Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application
Detail 01
Detail 02

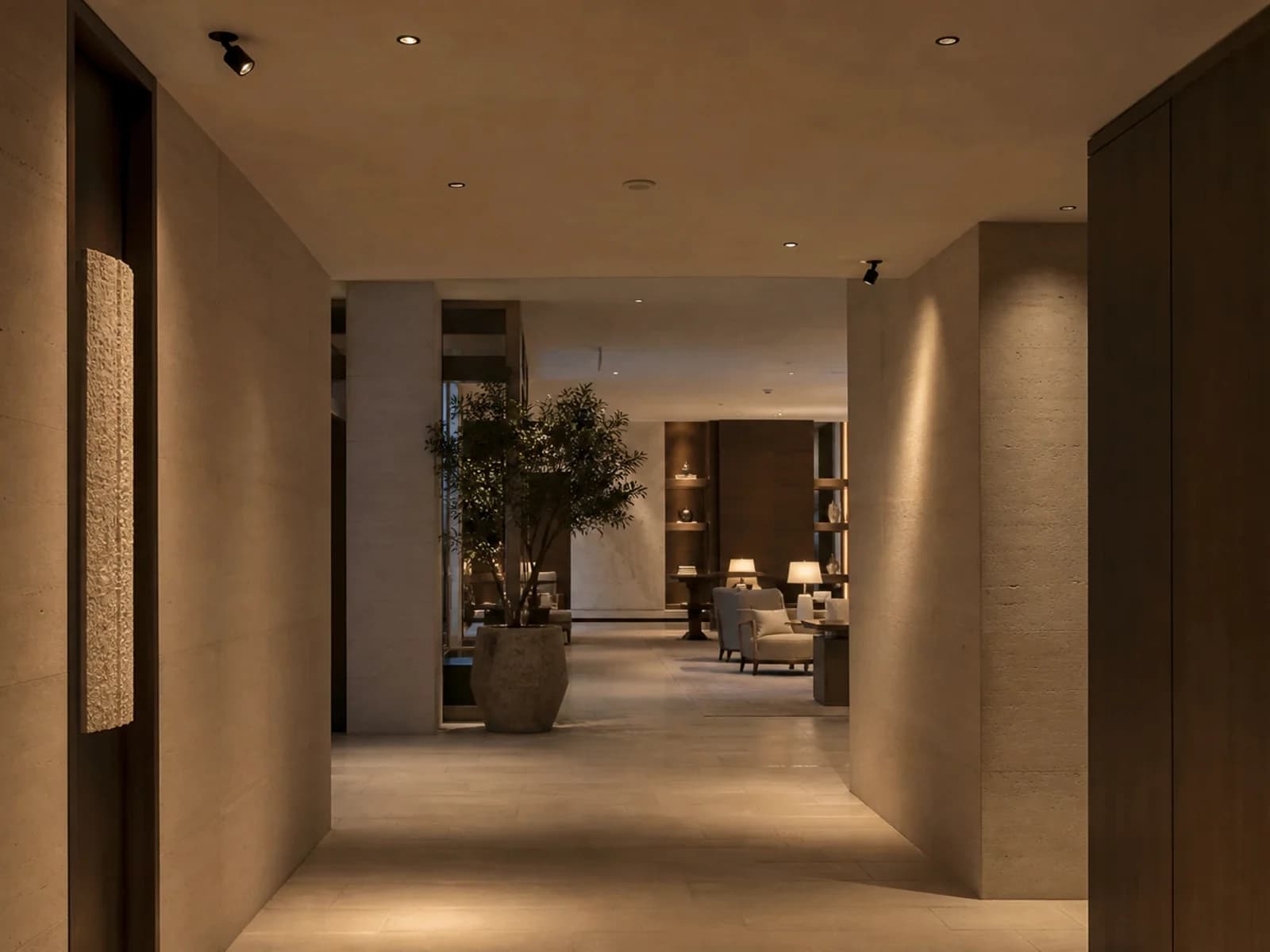

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 14W | Ø83 × H65 mm | Ø75 mm |
| 20W | Ø103 × H70 mm | Ø95 mm |
| 30W | Ø132 × H75 mm | Ø120-125 mm |
| 40W | Ø160 × H80 mm | Ø145-150 mm |
| 48W | Ø180 × H85 mm | Ø165-170 mm |
| 14W | 90 × 90 × H60 mm | 75 × 75 mm |
| 20W | 110 × 110 × H70 mm | 95 × 95 mm |
| 30W | 145 × 145 × H75 mm | 130 × 130 mm |
| 40W | 165 × 165 × H85 mm | 150 × 150 mm |
| 48W | 185 × 185 × H92 mm | 170 × 170 mm |
Published row 2
- Power
- 20W
- Dimensions
- Ø103 × H70 mm
- Cut-out
- Ø95 mm
Published row 3
- Power
- 30W
- Dimensions
- Ø132 × H75 mm
- Cut-out
- Ø120-125 mm
Published row 4
- Power
- 40W
- Dimensions
- Ø160 × H80 mm
- Cut-out
- Ø145-150 mm
Published row 5
- Power
- 48W
- Dimensions
- Ø180 × H85 mm
- Cut-out
- Ø165-170 mm
Published row 6
- Power
- 14W
- Dimensions
- 90 × 90 × H60 mm
- Cut-out
- 75 × 75 mm
Published row 7
- Power
- 20W
- Dimensions
- 110 × 110 × H70 mm
- Cut-out
- 95 × 95 mm
Published row 8
- Power
- 30W
- Dimensions
- 145 × 145 × H75 mm
- Cut-out
- 130 × 130 mm
Published row 9
- Power
- 40W
- Dimensions
- 165 × 165 × H85 mm
- Cut-out
- 150 × 150 mm
Published row 10
- Power
- 48W
- Dimensions
- 185 × 185 × H92 mm
- Cut-out
- 170 × 170 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- SMD LED
- CCT
- 2700–6500K
- CRI
- ≥80/90
- Beam
- 55°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD2409
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
