Published row 1
- Power
- 12W
- Dimensions
- 115 × H50 mm
- Cut-out
- Ø100 mm
Product model / MET-TD701
Engineering Die-Cast COB Downlight
Catalogue-sourced downlight family for villa, hospitality and commercial indoor lighting specifications.
Product
Application

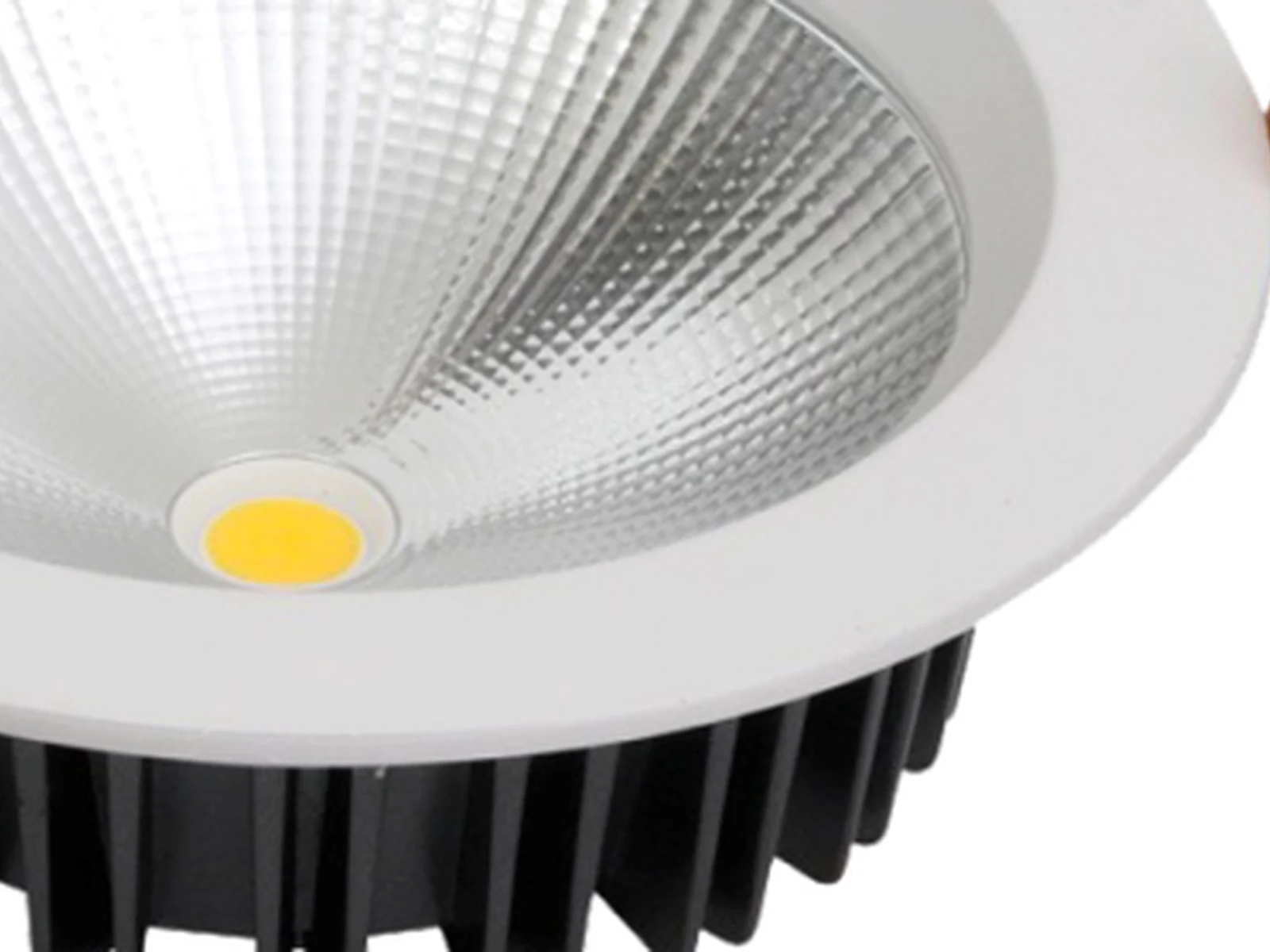

Detail 01
Detail 02

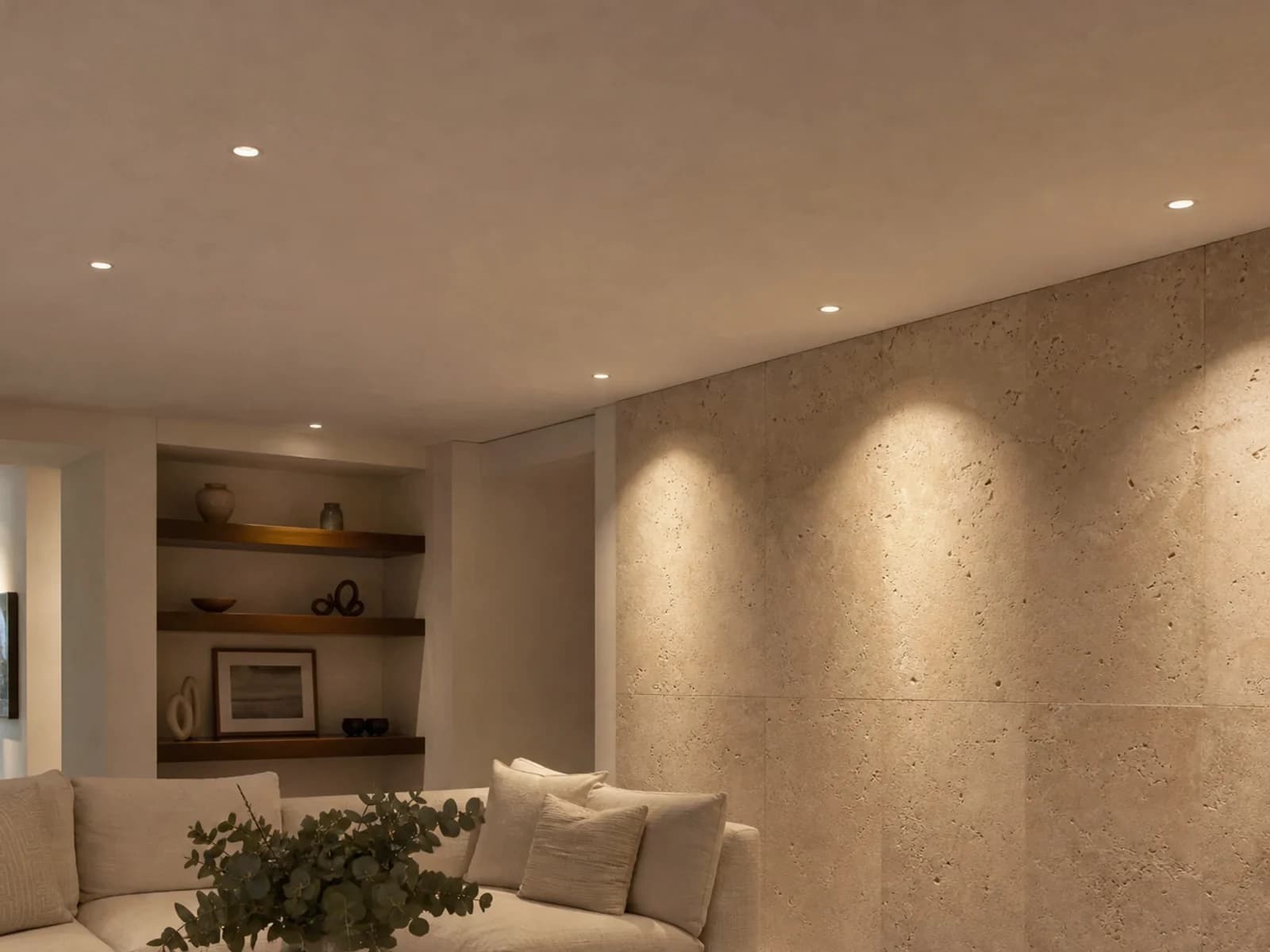

Application reference / not project evidence
A quiet ceiling-lighting direction.
Use this scene to discuss lighting intent. Use the registered product media and published rows above to identify the model.
Available configurations
Configuration options
Compare power, overall dimensions and ceiling cut-out from the same configuration row.
| Power | Dimensions | Cut-out |
|---|---|---|
| 12W | 115 × H50 mm | Ø100 mm |
| 14W | Ø145 × H63 mm | Ø125 mm |
| 20W | Ø160 × H58 mm | Ø145 mm |
| 24W | Ø190 × H60 mm | Ø170 mm |
| 30W | Ø230 × H75 mm | Ø195 mm |
| 36W | Ø230 × H75 mm | Ø195 mm |
| 40W | Ø230 × H75 mm | Ø195 mm |
Published row 2
- Power
- 14W
- Dimensions
- Ø145 × H63 mm
- Cut-out
- Ø125 mm
Published row 3
- Power
- 20W
- Dimensions
- Ø160 × H58 mm
- Cut-out
- Ø145 mm
Published row 4
- Power
- 24W
- Dimensions
- Ø190 × H60 mm
- Cut-out
- Ø170 mm
Published row 5
- Power
- 30W
- Dimensions
- Ø230 × H75 mm
- Cut-out
- Ø195 mm
Published row 6
- Power
- 36W
- Dimensions
- Ø230 × H75 mm
- Cut-out
- Ø195 mm
Published row 7
- Power
- 40W
- Dimensions
- Ø230 × H75 mm
- Cut-out
- Ø195 mm
Product specifications
Optical, electrical, material and installation inputs
Use these optical, electrical, material and installation fields to prepare the project schedule.
Optical
- Light source
- COB LED
- CCT
- 2700–6500K
- CRI
- ≥80/90/97
- Beam
- 60° / 90°
Electrical
- Input voltage
- AC:220–240V
- Power factor
- ≥0.5/0.9
Material
- Published material
- Die-cast aluminum
Environment / installation
- Installation condition
- Specify in RFQ
- Environmental suitability
- Specify in RFQ
For wet or exterior locations, include the installation environment and required IP rating in the RFQ.
Quotation details
Commercial inputs for MET-TD701
Add the quantity, finish, destination and delivery target to receive current commercial terms.
- MOQ
- Confirm for project
- Lead time
- Confirm for project
- Warranty
- 3–5 years; confirm by selected configuration
- Sample route
- Available by quotation
- Packing
- Project quotation
- Delivery & Incoterm
- Project quotation
- Delivery window
- Project quotation
- Document scope
- Specify with the selected model
- Quotation
- Written quotation required
